Key Features of Enterprise include:-

• Manage events: video, audio, digital, SNMP, OPC, or 3rd party UDP & TCP messages
• Create incident timelines from a set of events, with full device time synchronisation assured
• Improved efficiency by use of operating procedural prompts and automated responses
• Easy access to, and reporting of, incidents, events, user access and system status information
• User configurations limit access to system functionality
• A profile configuration tool-set allowing personalised look and feel
• A powerful database management system (DBMS) that records all events, user activity and system status information

The NetWatch suite is flexible and capable of integration with third party equipment. This is an area of continual development to improve systems compatibility with third party equipment. Current supported interfaces include:-

Protocols & 3rd Party Interfaces:

• SNMP polling and traps
• OPC alarms and events
• High impedance digital inputs
• Third party SDK

Video / PTZ / Audio:

• RTSP, RTP, ONVIF, HTML
• PAL / NTSC

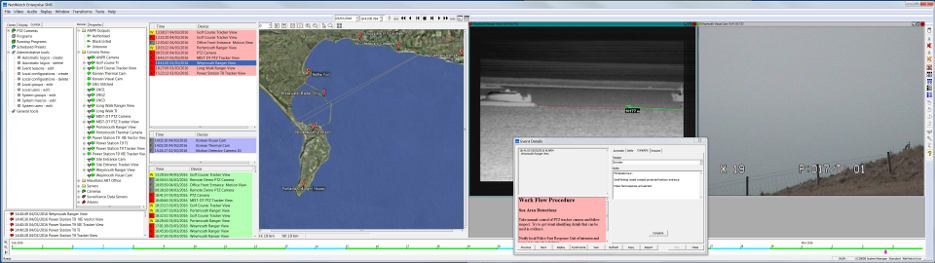

The Enterprise SMS, in conjunction with our mapping feature, Camera Interface Recorder servers and MIST servers, provides a real world co-ordinate system which places cameras within a map and plots the relative position of targets within a camera’s field of view. The tracking of lone guards is also possible using GPS phone data and plotting the guard’s position onto the same map.

Event and/or fault information can trigger the generation of SMS messages directly to a responder’s phone, dramatically reducing incident response times. Alternatively, if a response is not urgent, these triggers can be sent as emails.

Features

• Camera view selection
• Normal + transform processed
• Motion or Tracking
• Replay
• Camera auto cycle definition tools
• Dual viewing of camera video
• Review of recorded video
• Normal real time
• Review of recorded video
• Time-synchronised camera feeds
• Non-synchronised individual camera views
• Evidence extraction traceability & authentication
• Time-synchronised across recorders
• Download to local SCS evidence safe
• Device GUID tree topology
• Bitwise encoding MD5, SHA1, SHA256 and SHA512
• Encrypted authentication certificate
• Event Database Management System
• Events colour coded by type & priority
• Linkage to response procedure and action taken log
• Alarms linked to device, with time and date stamps
• Time-stamped operator activity logs monitoring
• Log on / off
• Cameras viewed / reviewed
• Data downloads made
• Remote recorders, servers
• Configuration
• Restart / Shut down
• System tools
• Video frame clipboard capture
• Recorder, and server, time synchronisation
• DBMS management
• Audio Communication
• Full duplex point-to-point voice
• Broadcast pre-recorded messages
• User privileges
• User groups and profiles
• View / review video data download
• Configuration of SCS features; PTZ movement, tours and presets, audio, camera cycles, display arrangements
• Recorder / Server / Encoder configuration features; include camera naming, camera grouping etc.
• Full control of engineering

Operator Usability

• Operate using the map tools
• Open camera views by clicking on map icons or in the camera FOV depicted on the map
• Move PTZ camera by clicking anywhere on the map (all PTZ cameras in the area can move to target area)
• Operate using the navigation tools
• Open camera views by clicking on camera icons
• Review alarms by clicking on an alarm event (opens the cameras associated with the alarm, switches to review mode and sets the time and date to the alarm event)
• Operate using dynamic PTZ control
• Click and drag window size to zoom in on an area
• Point and click in the image.
• Geographic area
• View category
• Site
• PTZ camera control - click on the camera view
• Hover the pointer over the camera view, the cursor will change to a direction indicator, click and the camera will follow. Zoom in and out using the mouse wheel.
• Joystick controls allow full progressive movement of the PTZ camera
• Access to logs and event data
• Click on the log icon of the recorder or encoder to open a real time window of the log.
• Click on any event in the current, deferred or completed tables to view device, response procedure, and action taken data
• Online review of recorded video data without interrupting the recording process
• Access to DBMS event information
• Synchronise event text and video with one click
• Incident download
• Download wizard ensuring ease of use and maintained information security
• Improved vigilance by
• One click feature operation
• Task automation
• Clear layout and responsive software
